Best & LLoyd Oil Sight Glass and Gasket Kit

Part No 54-462 Best+Lloyd type 2mm thick ,36mm diameter Oil Sight Glass and gasket kit. 36 mm diameter Oil Sight Glass- hardened glass, 2 mm thick upper gasket made from neoprene impregnated cork 1 mm thick base gasket made from neoprene impregnated cork Three sets of gaskets per kit (6 gaskets in total) Only one set of gaskets are required for the installation. The other two sets are spares for the future
Availability: In stock
SKU: 54-462
£24.65
Part No54-462
Best+Lloyd type 2mm thick ,36mm diameter Oil Sight Glass and gasket kit

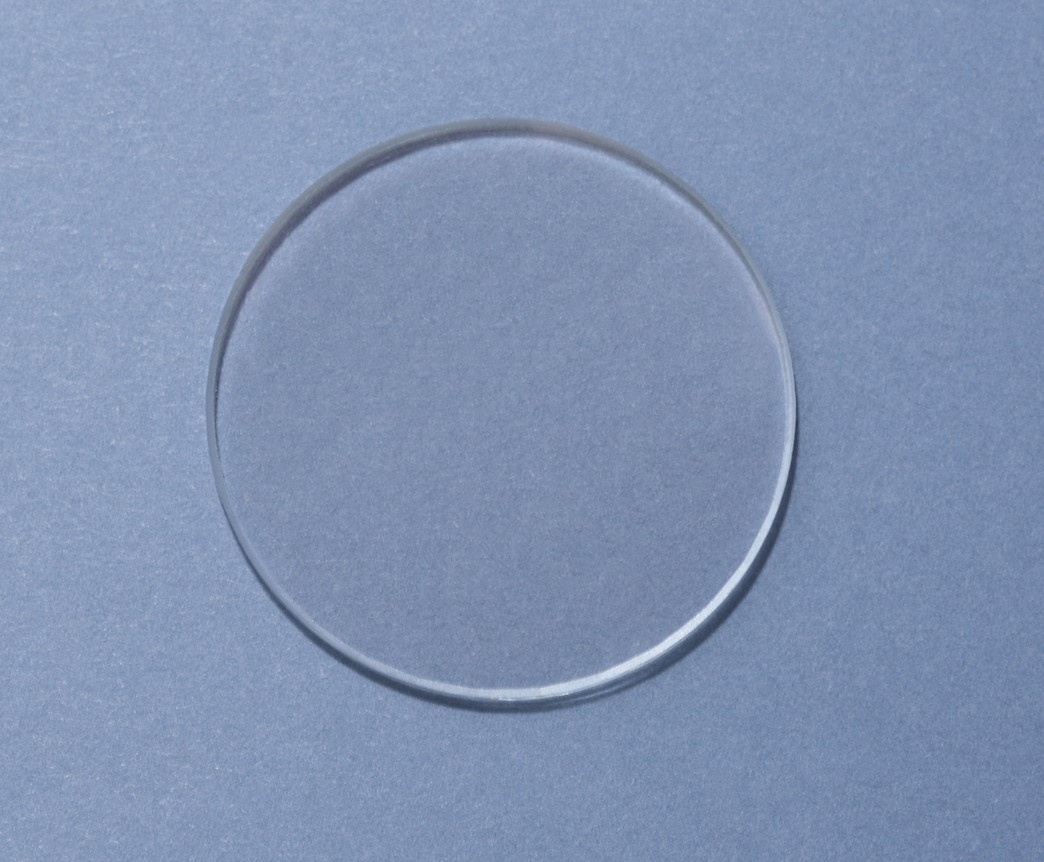

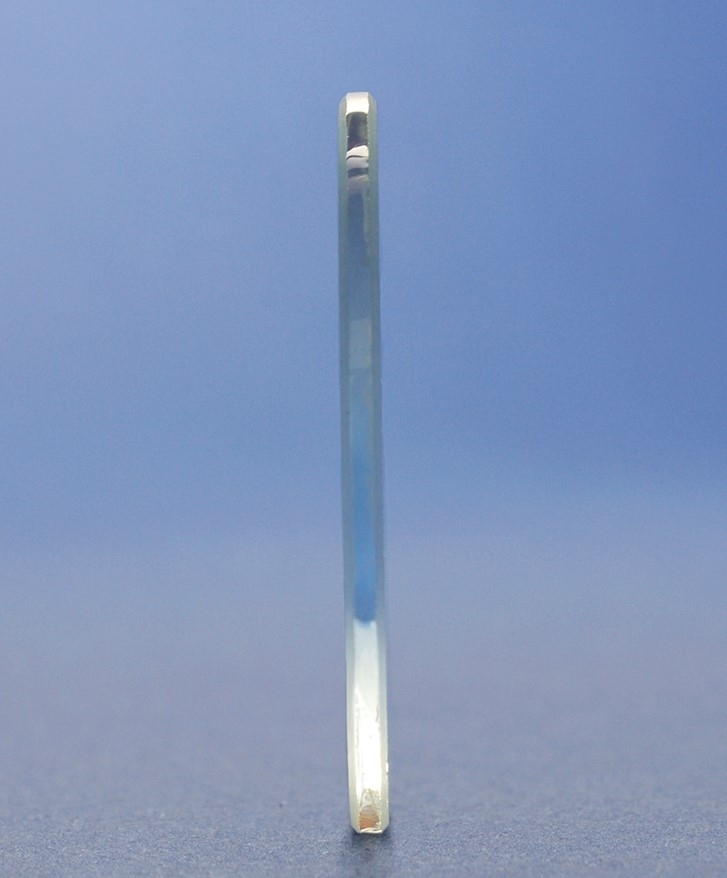

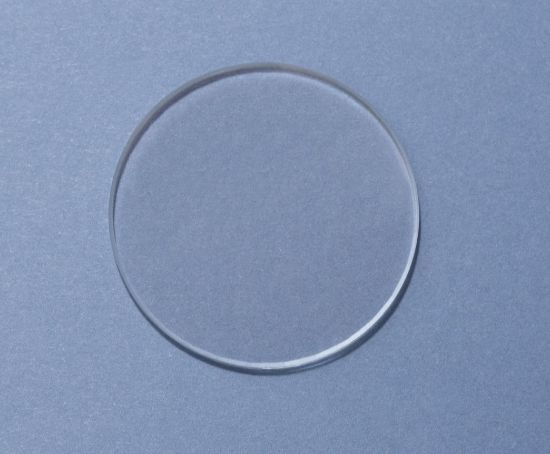

36 mm diameter Oil Sight Glass- hardened glass,

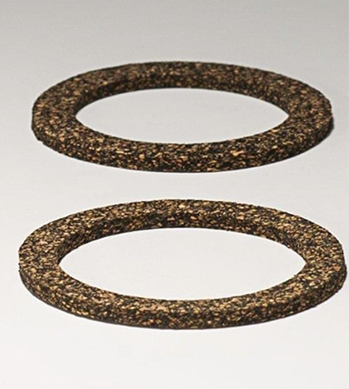

2 mm thick upper gasket made from neoprene impregnated cork
1 mm thick base gasket made from neoprene impregnated cork
Three sets of gaskets per kit (6 gaskets in total)
Only one set of gaskets are required for the installation. The other two sets are spares for the future
The 2mm thick glass plus the 2mm+1mm thick gaskets (in their uncompressed state) allow enough spare thread space on the pump cup after gasket compression post the final assembly tightening up process
NB. If your motorcycle is a Sunbeam then consider using the Glass and gasket set Part Nr 75-462 which has a different base gasket to cope with the grooves on the cup rim of some Sunbeams
